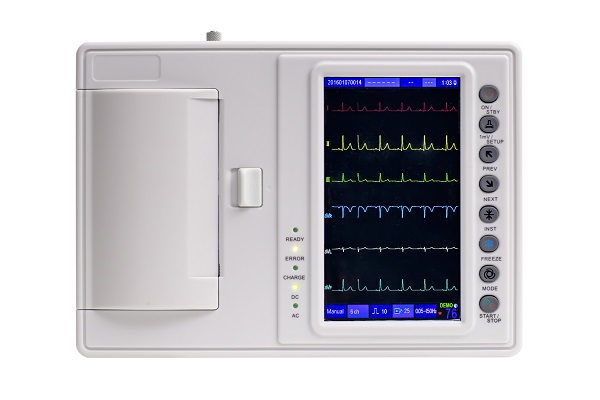

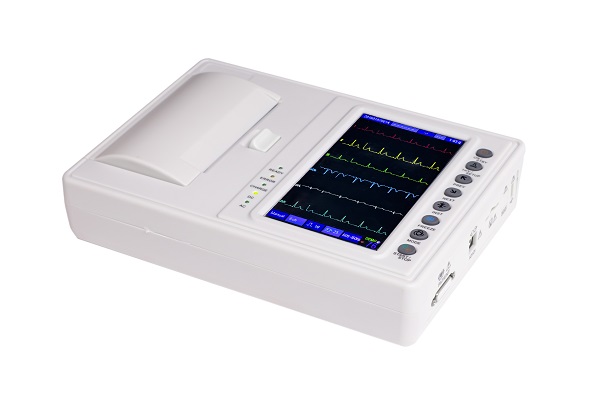

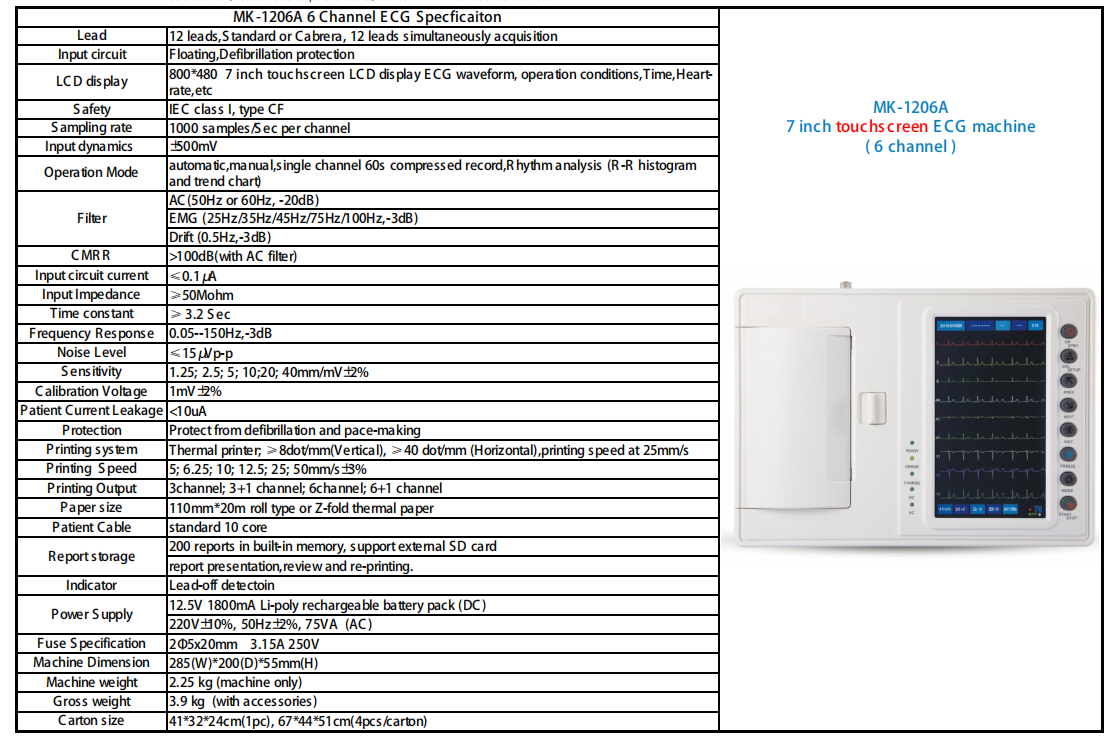

| ECG-1206A 6 Channel ECG Spesifikaasje | ||
| Foarsprong | 12 leads, Standert as Cabrera, 12 leads tagelyk oanwinst | |
| Ynput circuit | Floating, Defibrillaasje beskerming | |
| LCD display | 800 * 480 7 inch touchscreen LCD-werjefte ECG-golffoarm, operaasjebetingsten, Tiid, hertslach, ensfh. | |
| Feilichheid | IEC klasse I, type CF | |
| Sampling rate | 8000 samples/sek | |
| Ynput dynamyk | ± 500 mV | |
| Operaasje Mode | automatyske, hânmjittich, ienkanaal 60s komprimearre record, ritme analyze (RR histogram en trend chart) | |
| Filter | AC (50Hz of 60Hz, -20dB) | |
| EMG (25Hz/35Hz/45Hz/75Hz/100Hz,-3dB) | ||
| Drift (0.5Hz, -3dB) | ||
| CMRR | >100dB (mei AC filter) | |
| Input circuit stroom | ≤0.1μA | |
| Ynfierimpedânsje | ≥50 Mohm | |
| Tiid konstante | ≥ 3.2 sek | |
| Frequency Response | 0.05--150Hz, -3dB | |
| Noise Level | ≤15μVp-p | |
| Gefoelichheid | 1,25; 2.5; 5; 10;20; 40mm/mV±2% | |
| Kalibraasje Voltage | 1mV±2% | |
| Patient Aktuele Leakage | <10uA | |
| Beskerming | Beskermje tsjin defibrillaasje en tempo-making | |
| Printing systeem | termyske printer; ≥8 dot/mm (fertikaal), ≥40 dot/mm (horizontaal), printsnelheid by 25mm/s | |
| Printsnelheid | 5; 6.25; 10; 12.5; 25; 50 mm/s ± 3% | |
| Printing Utfier | 3 kanaal; 3+1 kanaal; 6 kanaal; 6+1 kanaal | |
| Papier grutte | 110mm * 20m roll type | |
| Patient Kabel | standert 10 kearn | |
| Meld opslach | 200 rapporten yn ynboude ûnthâld, stipe eksterne SD card | |
| rapport presintaasje, resinsje en opnij printsjen. | ||
| Yndikator | Lead-off detectoin | |
| Streamtafier | 11.1V 1800mA Li-poly oplaadber batterijpakket (DC) | |
| 220V±10%, 50Hz±2%, 75VA (AC) | ||
